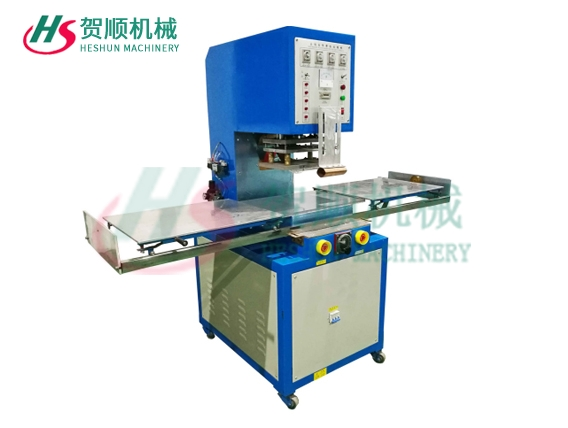

Product name: Manual sliding table high frequency welding machine high frequency synchronous fusing machine
Product model: HS-10KW-S
The principle of high frequency is to stimulate the oscillator to generate a high frequency electromagnetic field by the electron tube. The object to be processed is pressed between the upper and lower electrodes with high-frequency electromagnetic fields, and its internal molecules are excited and move at a high speed to rub against each other to generate heat and melt, and achieve the purpose of welding or embossing under the pressure of the mold.
Features of manual sliding table high frequency synchronous fusing machine:
1. The introduction of Taiwanese technology has beautiful appearance, reasonable design, novel structure, reliable performance and strong practicability.
2. Adopting European standard square high-frequency oscillation box design, excellent and reasonable oscillation circuit system, so that high-frequency output is stable and output is greater.
3. The high-sensitivity spark protector reduces the damage to the mold during ignition and greatly reduces the loss rate of the product.
4. Over-current protection circuit to avoid overloading of the tube and prolong the service life of the tube.
5. Use advanced high-cycle shielding technology to ensure no high-cycle leakage.
6. The machine can be designed according to the needs of the product to quickly complete the welding of the product.
7. The welding is firm and stable, and the thickness of the material can be satisfied
Technical specifications:
Product Details | technical parameter | Product Details | technical parameter |
machine type: | HS-8KW-S/10KW/12KW | pressure: | 500KG/600KG/700KG |
Motor power: | 8kW/10KW/12KW | Electrode interval: | 150MM |
voltage: | 220/380V*3P 50/60HZ | Active size of welding head: | 150MM |
frequency: | 27.12MHz | Plate size | 350*500MM/400*550MM |
input power: | 15KVA/15KVA/20KVA | working desk size: | 550*750MM/600*800MM |
Rectifier: | SILICONDIODE | weight: | 750KG/850KG |
Tube: | 7T85RB | Welding time: | 0-10s |
Drive mode: | pneumatic | Yield: | According to the proficiency of the production staff |
