Automatic welding machine disc
Content
Features
Parameter

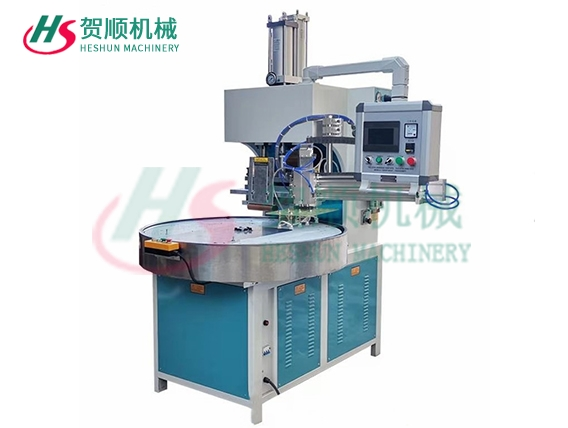

Product Name: Automatic Disc Welding Machine
Principle of automatic welding machine disc :
The high frequency electromagnetic field is generated by the tube self-excited oscillator. The object to be processed is pressed between the upper and lower electrodes with high-frequency electromagnetic fields, and its internal molecules are excited and move at a high speed to rub against each other to generate heat and melt, and achieve the purpose of welding or embossing under the pressure of the mold.
Features of automatic welding machine disc:
A. The output power is strong, the cycle rate generated by the local oscillator is 27.12MHZ or 40.68MHZ, which conforms to the international industrial band standard. Various control devices and special electronic circuits can avoid improper operation, and can weld products and improve products in the fastest time. Yield;
B. Highly sensitive spark protection device, when sparks are generated, it can automatically cut off the high-cycle circuit to reduce damage to the parts and objects. When the current is too high, it will automatically cut off the high-voltage guarantee oscillating tube and rectifier;
Technical specifications:
Product Details | technical parameter | Product Details | technical parameter |
machine type: | HS-15KW-3AC | pressure: | 500KG |
High cycle power: | 15KW | Motor interval: | 200MM |
voltage: | 220/380V*3P 50/60HZ | Welding activity size: | 150MM |
frequency: | 27.12MHz | Upper motor size: | 400*500MM |
input power: | 25KVA | working desk size: | 400*500MM |
Tube: | 8T85RB | Welding time: | 0-10s Adjustable |
Drive mode: | pneumatic | Capacity: | According to welding time and worker skills |
(All specifications related to the machine can be customized according to customer requirements. Due to the need for improvement, there will be no notice for specification changes)
