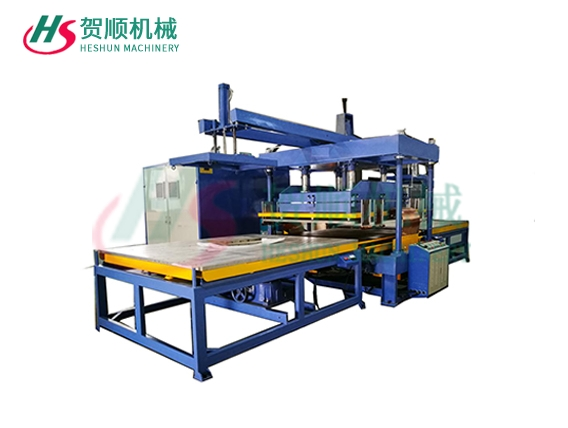

Single head blow up welding machine
Content
Features
Parameter
Product name: Single head blow-up welding machine , single head high frequency welding machine
Application scope:
Suitable for inflatable medical mattresses, inflatable floating islands, inflatable floating beds, inflatable boats, inflatable houses, inflatable tents, inflatable chairs, water skis, water jumping beds, rafting boats, water kayaks, car mattresses, spa mattresses , Inflatable mattresses, floating rows, swimming pools, inflatable sofas and other large-area PVC products welding processing.
Use and characteristics of single-head blow-up welding machine:
1. It is suitable for the welding of large-area PVC products such as PVC inflatable boats, spa mattresses, medical mattresses, inflatable mattresses, floating rows, swimming pools, inflatable sofas, etc.
2. The welding is firm, and the thickness of the material can be satisfied.
3. The double overcurrent protection circuit prevents the tube from overloading and prolongs the service life of the tube.
4. Equipped with a coherent meter that can set the current value, it will automatically cut off when the high-frequency current reaches the set value, to protect the product from excessive current and cause the product to be scrapped
5. Adopt high-sensitivity spark controller to effectively prevent mold damage.
6. European standard square high frequency oscillation box, with greater output and more stable.
Technical specifications:
Product Details | technical parameter | Product Details | technical parameter |
machine type: | HS-35KW-E | pressure: | 2500KG |
High cycle power: | 35KW | Motor interval: | 160MM |
voltage: | 220/380V*3P 50/60HZ | Welding activity size: | 200MM |
frequency: | 27.12MHz | Upper motor size: | 1200*1650MM |
input power: | 35KVA | working desk size: | 1300*1800MM |
Tube: | 8T87RB | Welding time: | 0-10s Adjustable |
Drive mode: | pneumatic | Capacity: | According to welding time and worker skills |
(All specifications related to the machine can be customized according to customer requirements. Due to the need for improvement, there will be no notice for specification changes)

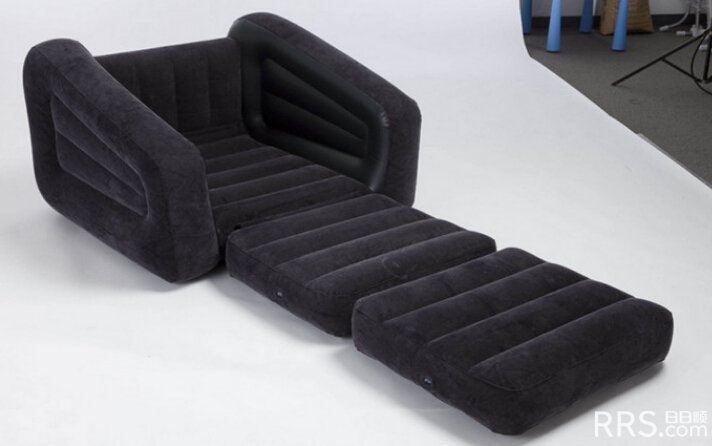

Equipment application case:
